Characteristics:
- 10MHz - 19GHz output frequency
- Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier
- At 7.5GHz, it has 45fs RMS jitter (100Hz to 100MHz)

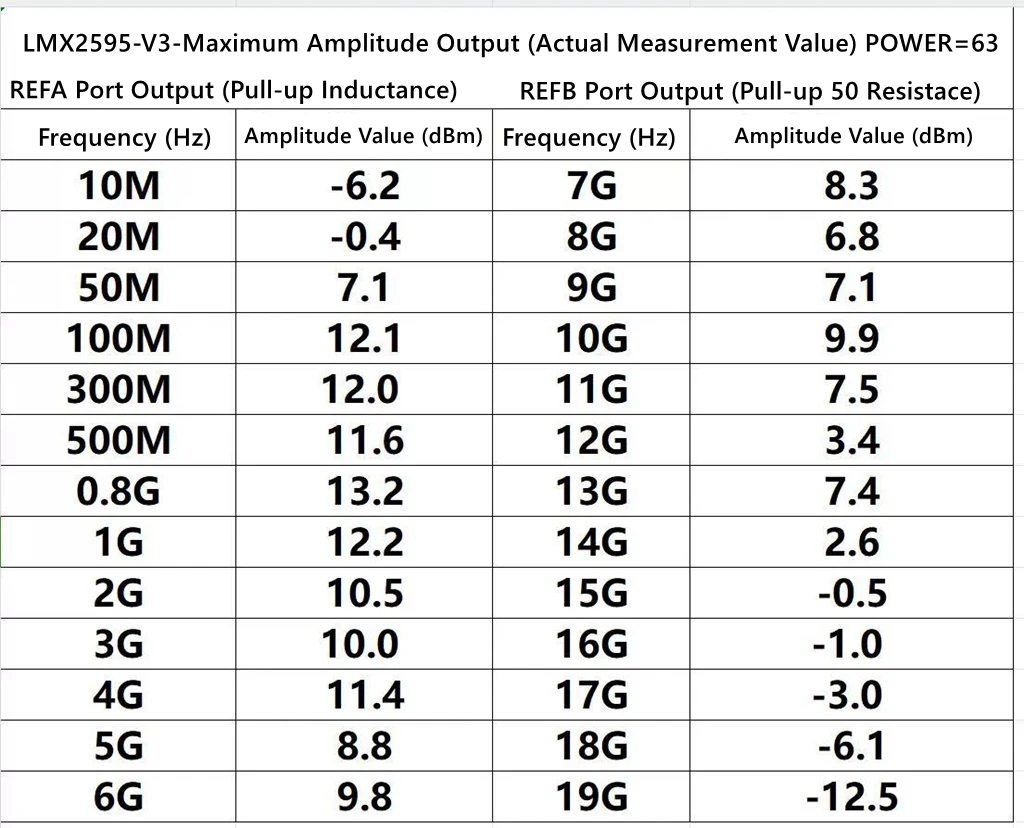

- Programmable output power
- Main specifications of PLL
- Quality factor: -236dBc/Hz
- Nominal 1/f noise: -129dBc/Hz
- Maximum phase detector frequency
- 400MHz integer mode
- 300MHz fractional mode
- 32-bit fractional N divider
- Eliminating integer boundary spurious using programmable input multipliers
- Achieve output phase synchronization across multiple devices
- Support SYSREF with programmable delay of 9ps resolution
- Application of frequency ramp up and linear frequency modulation pulse capability in FMCW
- VCO calibration speed less than 20 µs
- 3.3V single power supply operation
Application:
- 5G and millimeter wave wireless infrastructure
- Testing and measuring equipment
- Radar
- For MIMO
- Phased array antenna and beam-forming
- High speed data converter clock (supports for JESD204B)
Package Included:
- 1 x LMX2595 Core Board
Packing and Shipping
Shipping: Normally we use the standard fastest delivery.
Note: There is no return policy for this order. Only replacement can be given if product is dead on arrival and by providing video proof within 24 hours of delivery.
There is no GST input available for this order.
Any disputes are subject matter of Rohini court Delhi.
Product Specifications

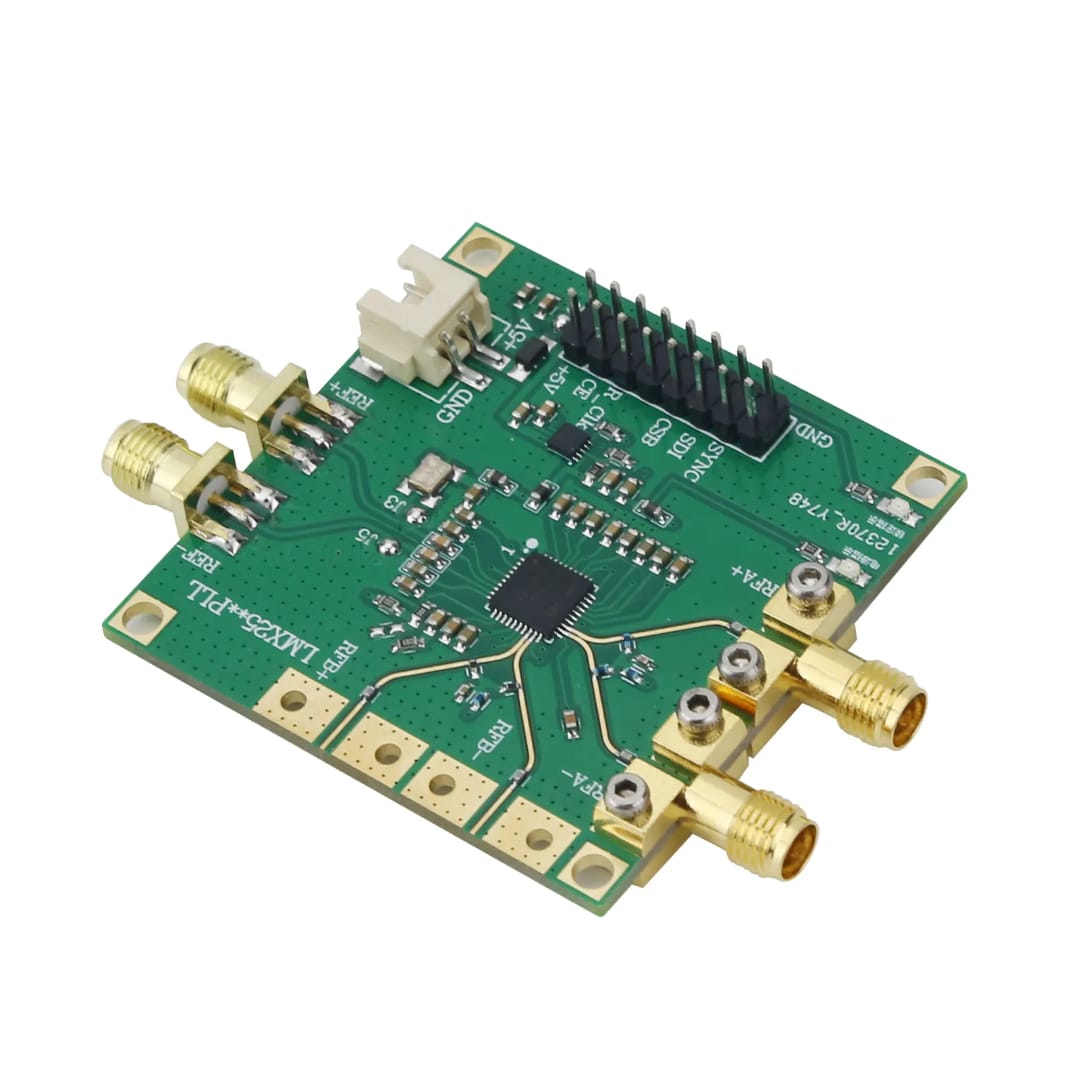

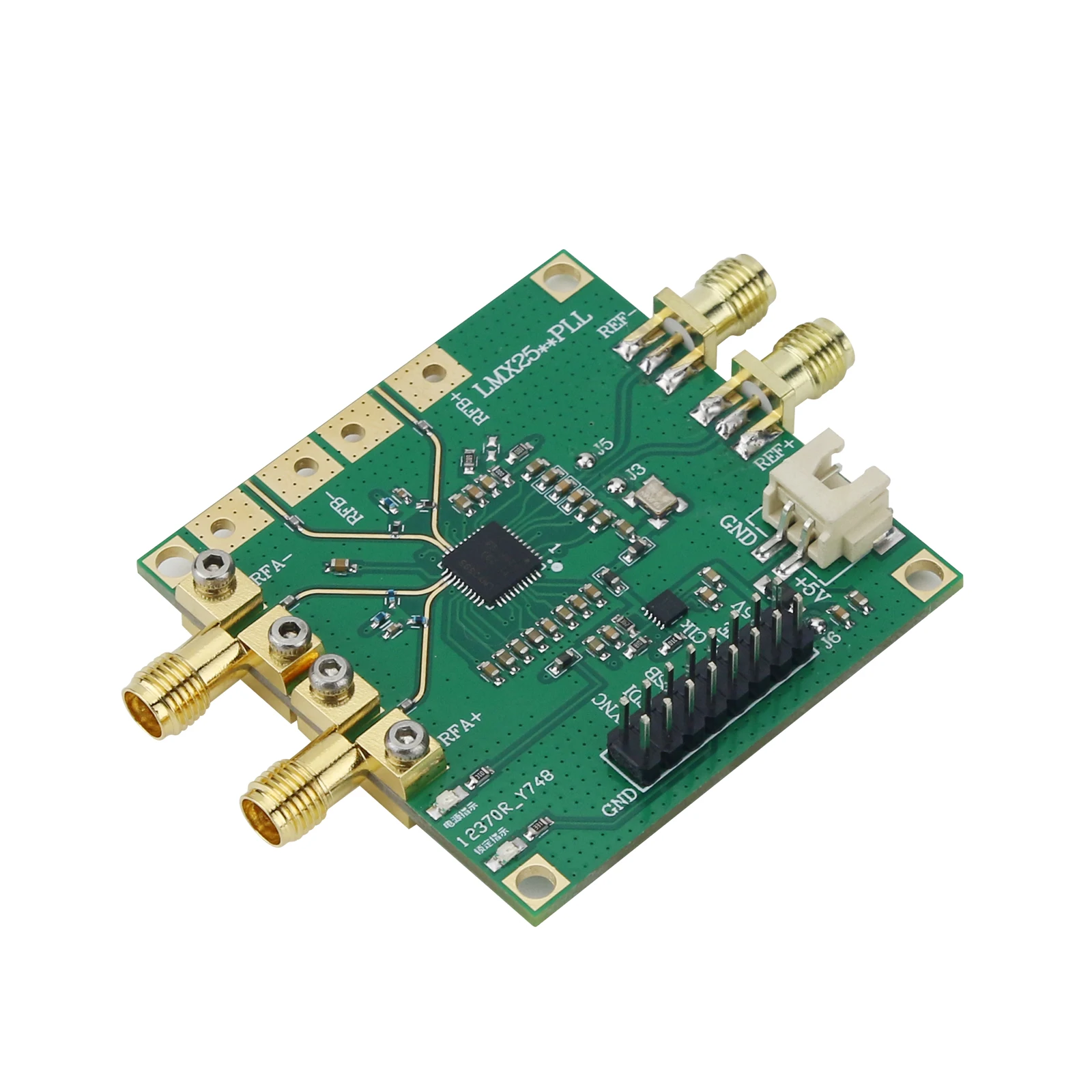

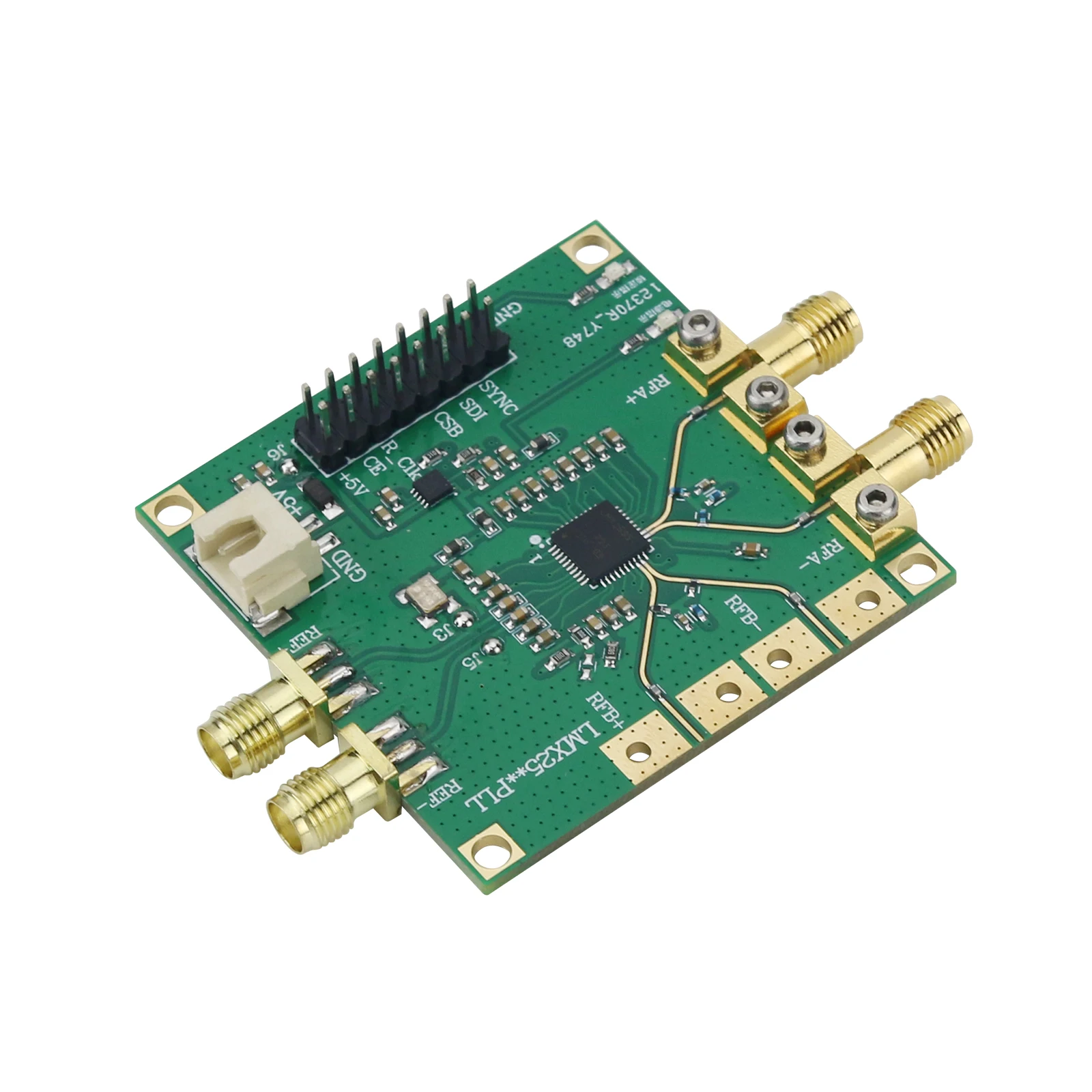

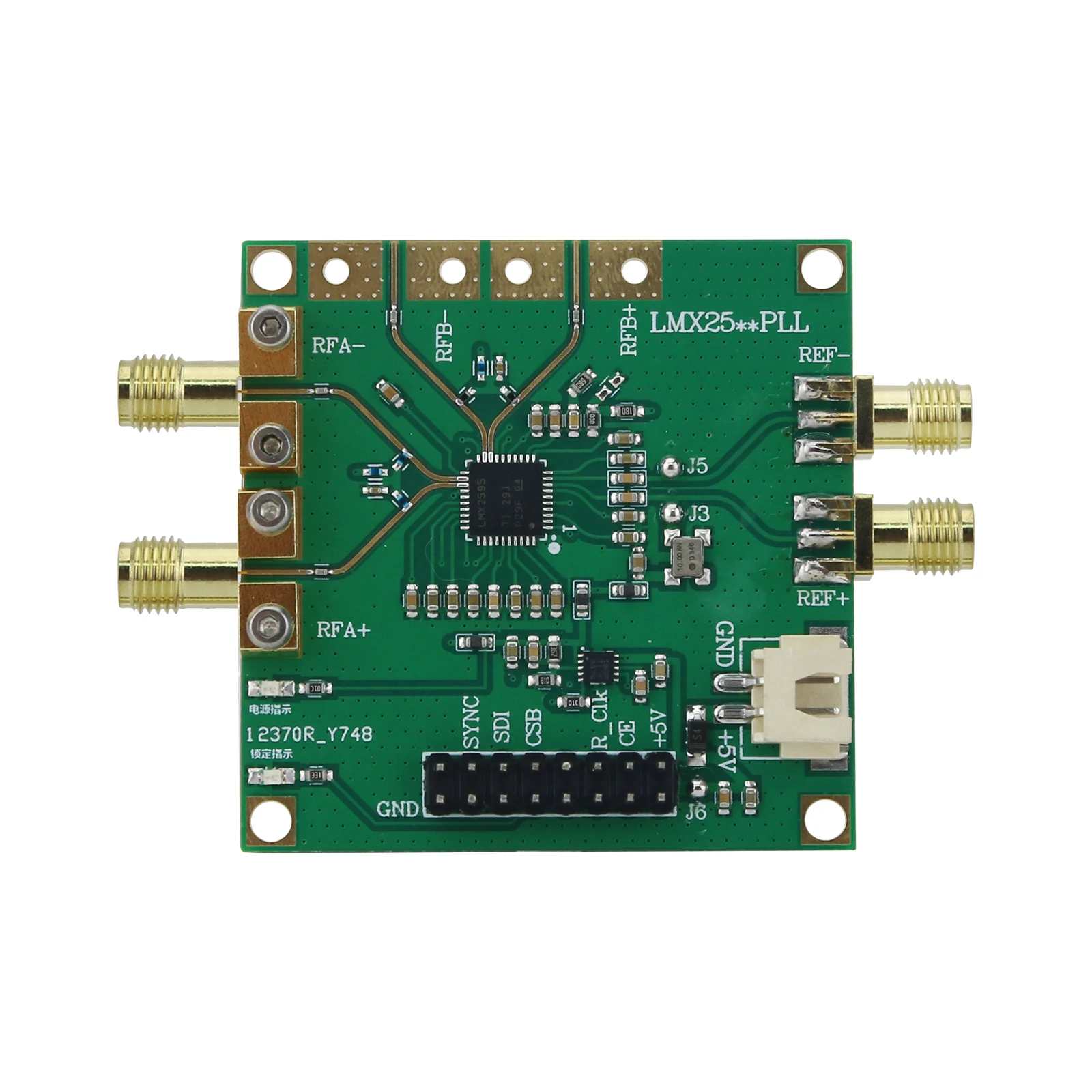

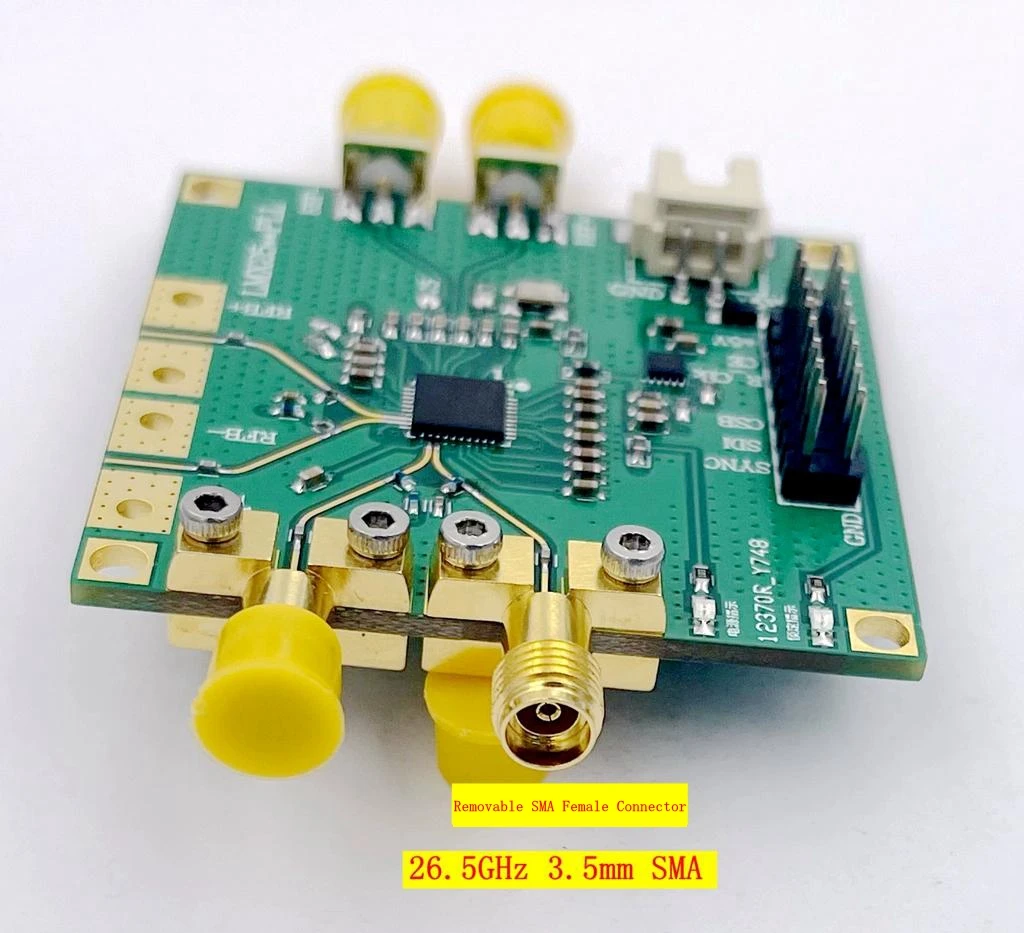

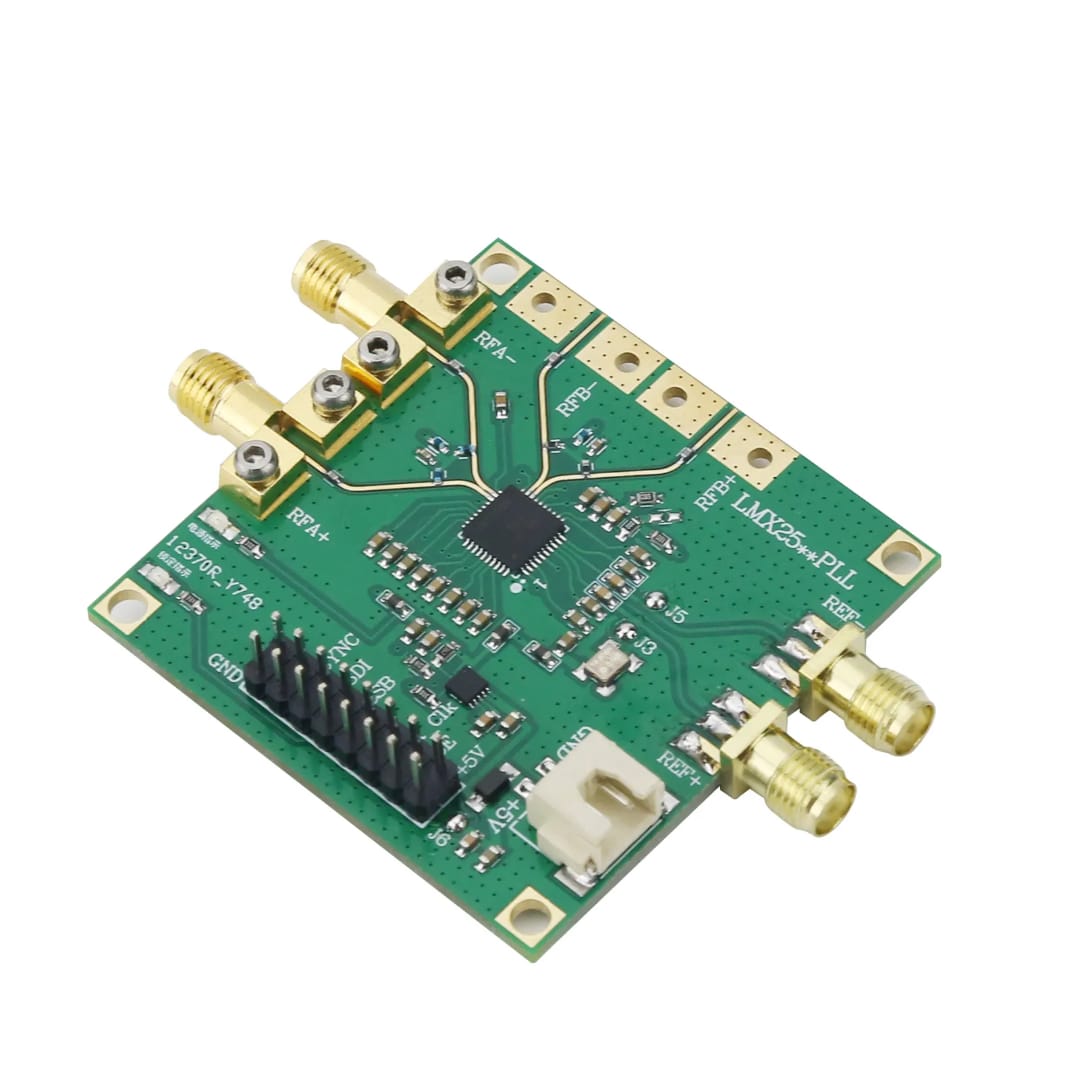

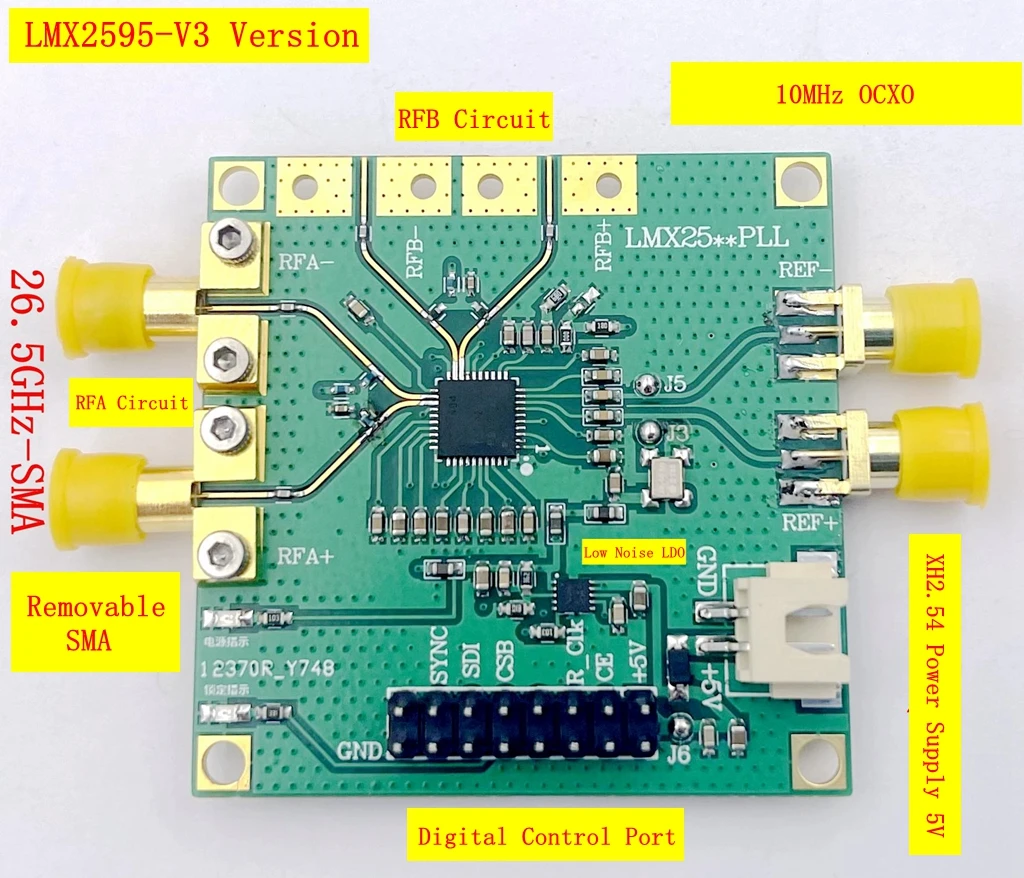

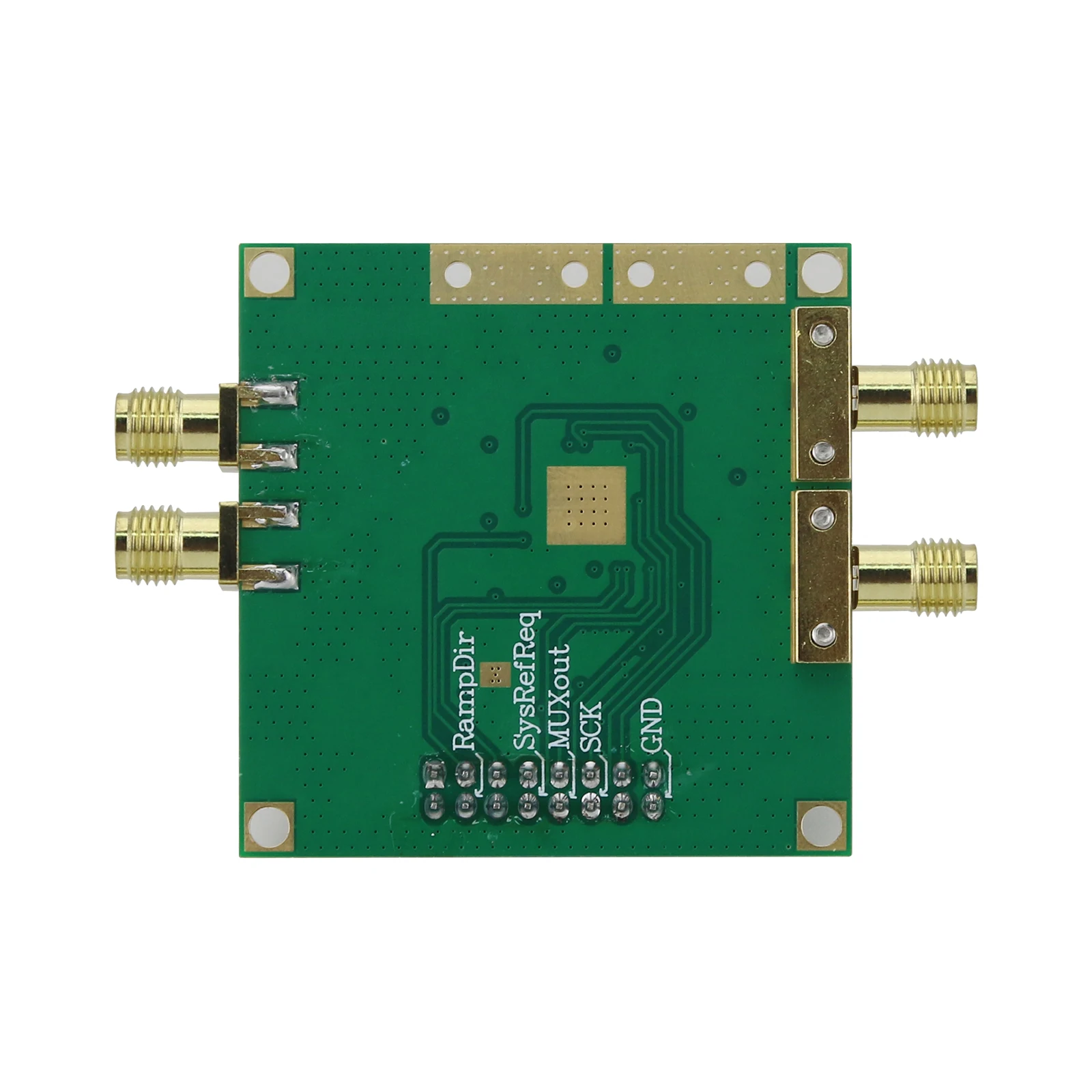

| Product Name | LMX2595 V3 PLL Core Board 10MHz-19GHz High-Frequency Phase Locked Loop Development Board with S MA Female Connector |
| Brand | Calmora |
| Category | LMX2595 V3 PLL Core Board |
| Weight | 450 g |
| Availability | In Stock |
