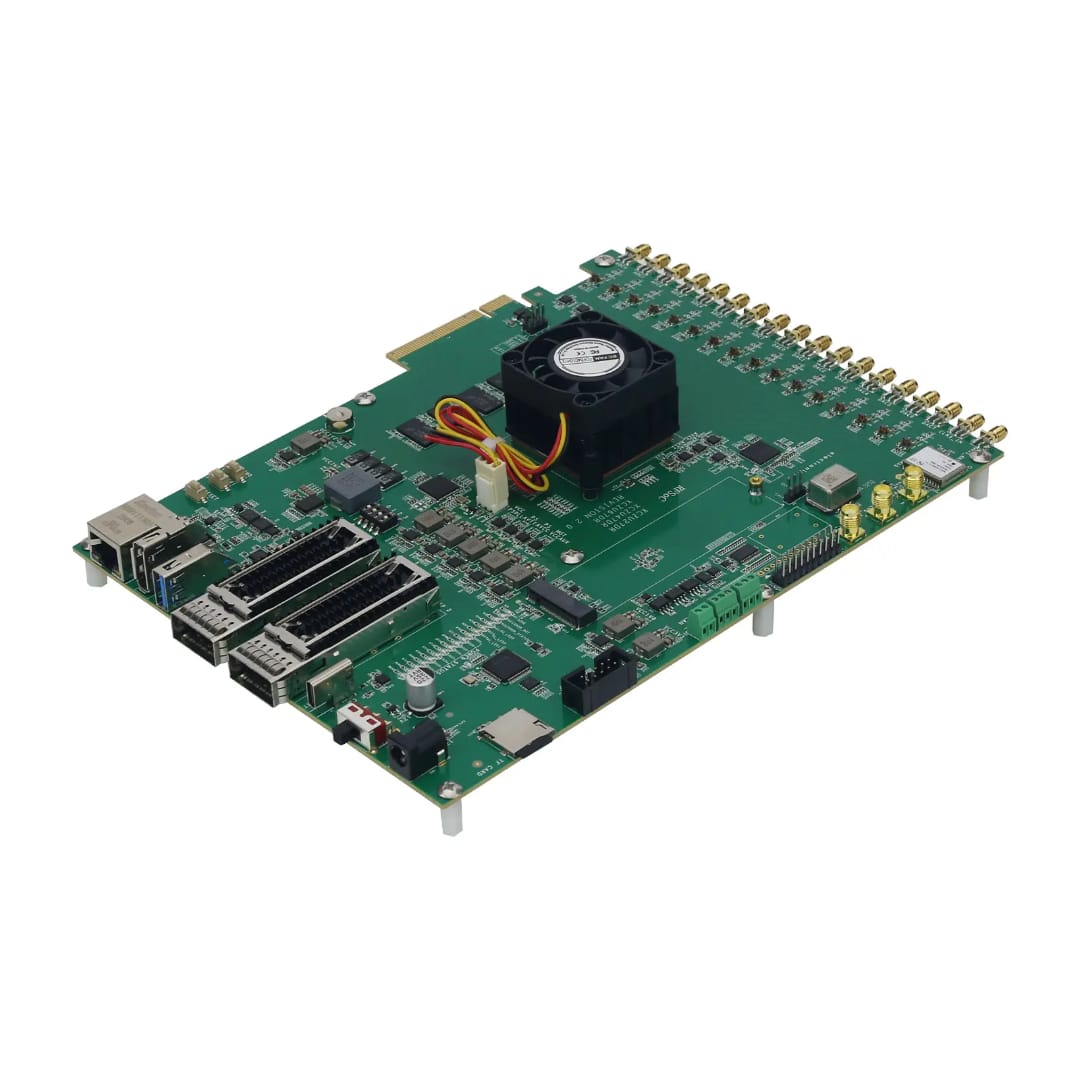

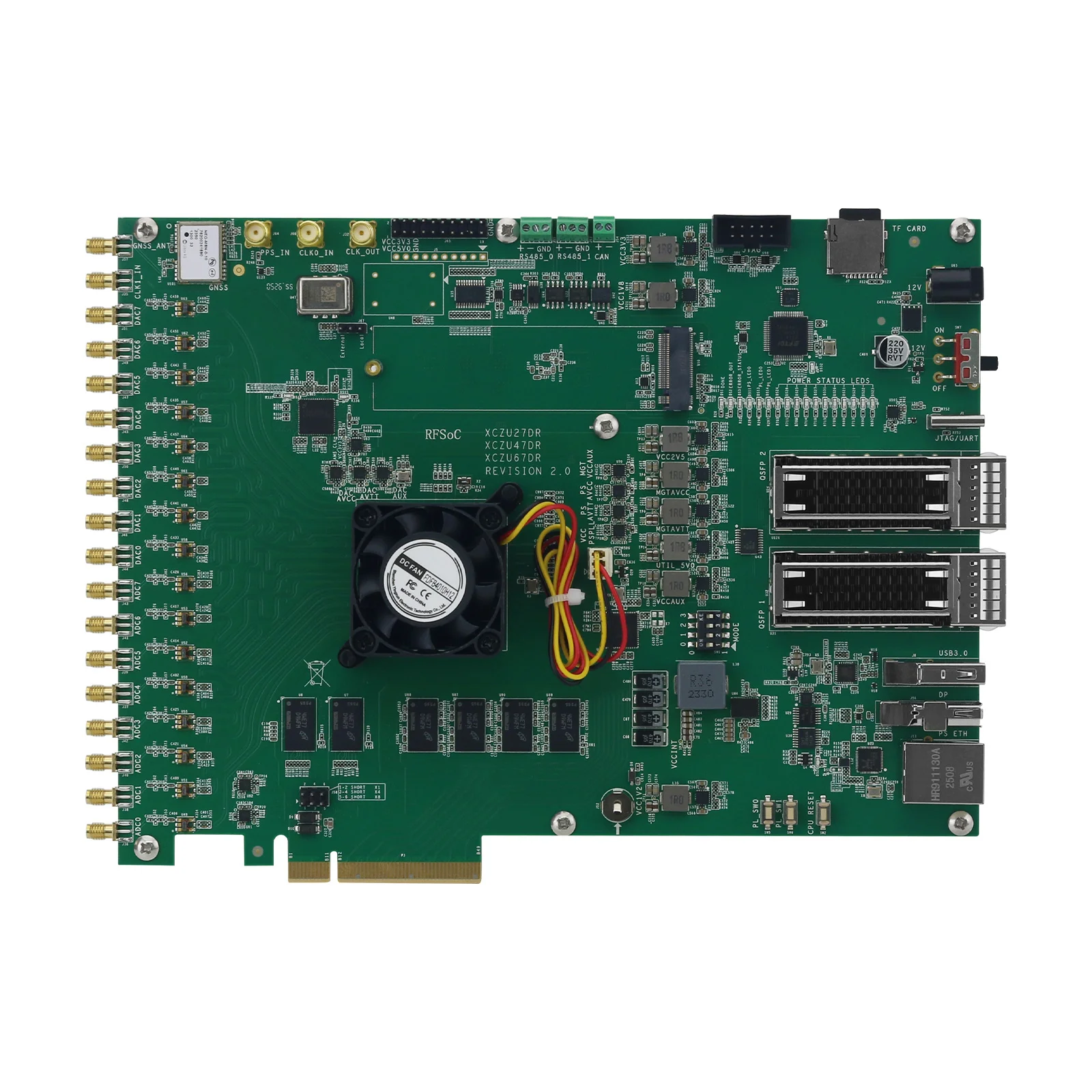

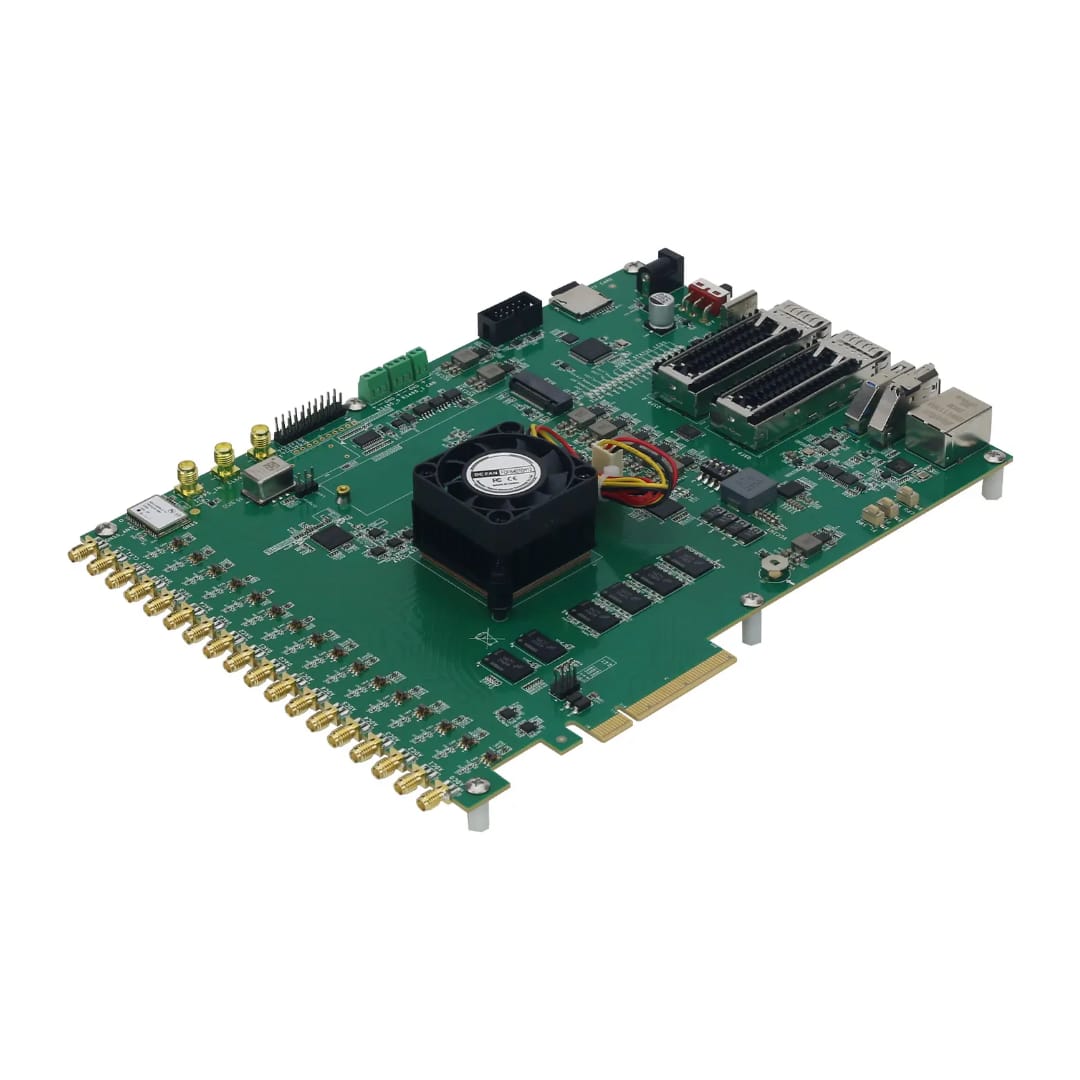

Features:
- RFSOC series XCZU27DR, XZU47DR, XCZU67DR (optional).
- For Panasonic M6 high-speed board, back drilling process, GTY speed up to 32.75Gb/s.
- Multiple startup modes can be configured through the dip switch.
- All first-line manufacturers' components, large factory processes.
Storage:
- QSPI FIASH: 512Mb x 2, model: MT25QU512ABB1EW9-0SIT
- PS SO-DIMM DDR4: 72Bit, supports ECC, 8G (can be replaced with high-capacity memory modules according to you own needs)
- PL DDR4: 32Bit, 4G
- EMMC: 32GB, model: for Micron MTFC32GAPALBH-IT
- PS SSD: NVME, PCIe x 128GB (default configuration, can be freely replaced)
- TF CARD: default configuration of 16GB TF card
- EEPROM: M24C02-RDW6TP, I2C interface

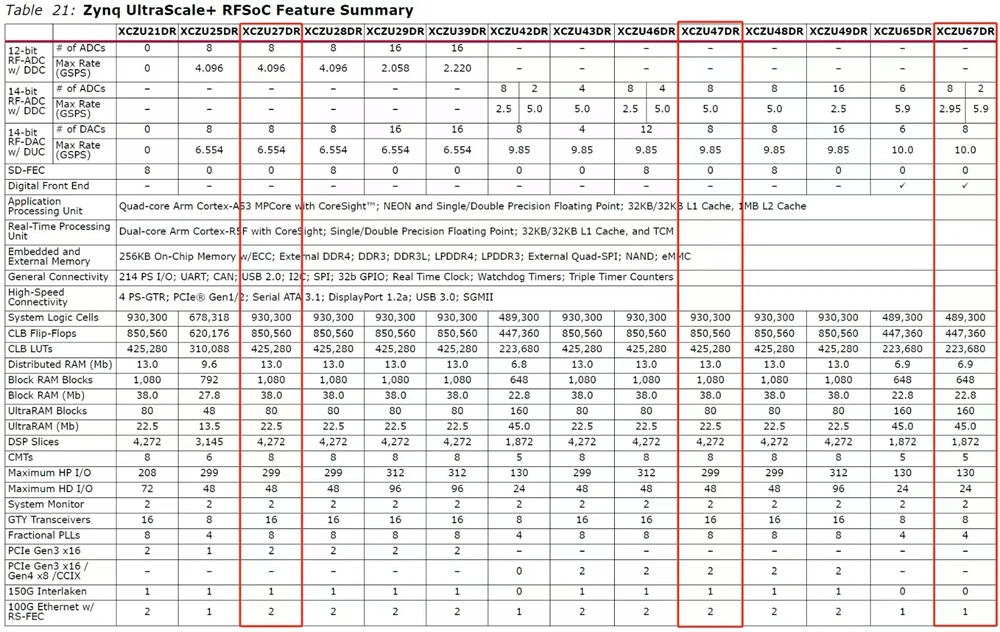

AD DA:
- XCZU27DR: 8-channel AD (12 bit 4.096 GSPS), 8-channel DA (14 bit 6.554 GSPS)
- XCZU47DR: 8-channel AD (14 bit 5.0 GSPS), 8-channel DA (9.85 GSPS)
- XCZU67DR: 10 channel AD (8 channel 14 bit 2.95 GSPS, 2 channel 14 bit 5.9 GSPS), 8 DA(14bit 10 GSPS)
Positioning and Timing:
- GNSS: Onboard GNSS module for UbIox NEO-M8N, supports PPS output
Expansion:
- IO Expansion: 2.54 pin rows, 16 IO, LVCMOS 3.3
- Expand GTY: introduce one channel GTH and CLK through S MA
Clock:
- Clock: SI5341B+LMK04828, onboard 19.2M VCXO, supports external clock input and output
Interface:
- Gigabit Ethernet: one PS and one PL, interface: RGMII
- Serial/JTAG: JTAG and PS UART in one, FT2232 solution, TYPE-C
- USB 3.0: one TYPE-A
- SATA: one, connected to PL's GTY Bank
- DP: one, connected to PS's GTR Bank
- QSFP+: one, 100Gb/s
- CAN: two, PS
- RS485: one, PL
- LED: 2 PS, 2 PL
- Dial switch: one, 2 bit
- Sensor: temperature sensor, I2C, LM75

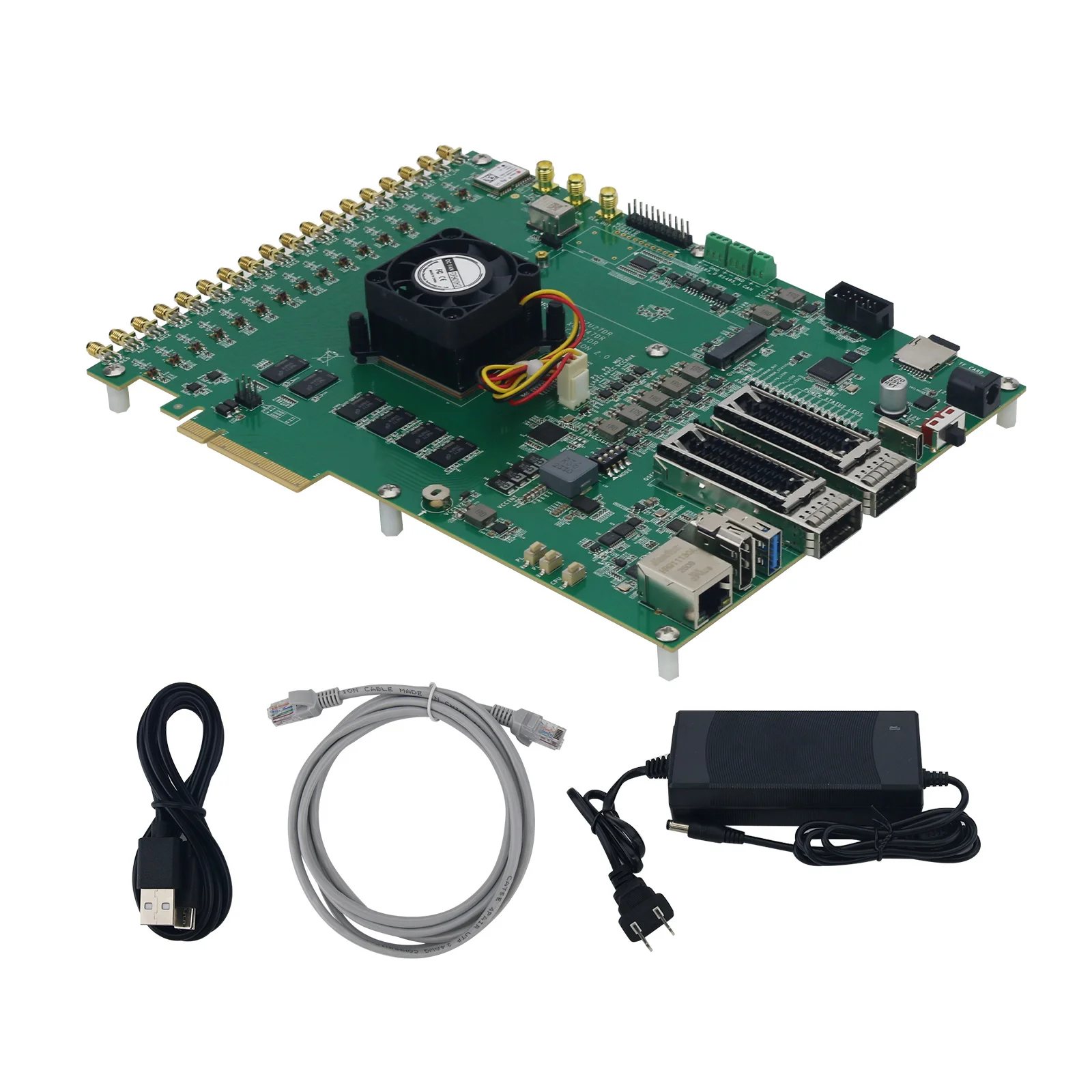

Package Included:
- 1 x Development Board
- RFSOC series XCZU27DR, XZU47DR, XCZU67DR (optional).
- For Panasonic M6 high-speed board, back drilling process, GTY speed up to 32.75Gb/s.
- Multiple startup modes can be configured through the dip switch.
- All first-line manufacturers' components, large factory processes.
Storage:
- QSPI FIASH: 512Mb x 2, model: MT25QU512ABB1EW9-0SIT
- PS SO-DIMM DDR4: 72Bit, supports ECC, 8G (can be replaced with high-capacity memory modules according to you own needs)
- PL DDR4: 32Bit, 4G
- EMMC: 32GB, model: for Micron MTFC32GAPALBH-IT
- PS SSD: NVME, PCIe x 128GB (default configuration, can be freely replaced)
- TF CARD: default configuration of 16GB TF card
- EEPROM: M24C02-RDW6TP, I2C interface
AD DA:
- XCZU27DR: 8-channel AD (12 bit 4.096 GSPS), 8-channel DA (14 bit 6.554 GSPS)
- XCZU47DR: 8-channel AD (14 bit 5.0 GSPS), 8-channel DA (9.85 GSPS)
- XCZU67DR: 10 channel AD (8 channel 14 bit 2.95 GSPS, 2 channel 14 bit 5.9 GSPS), 8 DA(14bit 10 GSPS)
Positioning and Timing:
- GNSS: Onboard GNSS module for UbIox NEO-M8N, supports PPS output
Expansion:
- IO Expansion: 2.54 pin rows, 16 IO, LVCMOS 3.3
- Expand GTY: introduce one channel GTH and CLK through S MA
Clock:
- Clock: SI5341B+LMK04828, onboard 19.2M VCXO, supports external clock input and output
Interface:
- Gigabit Ethernet: one PS and one PL, interface: RGMII
- Serial/JTAG: JTAG and PS UART in one, FT2232 solution, TYPE-C
- USB 3.0: one TYPE-A
- SATA: one, connected to PL's GTY Bank
- DP: one, connected to PS's GTR Bank
- QSFP+: one, 100Gb/s
- CAN: two, PS
- RS485: one, PL
- LED: 2 PS, 2 PL
- Dial switch: one, 2 bit
- Sensor: temperature sensor, I2C, LM75
Package Included:
- 1 x Development Board
Product packaging
Package: Normally we use the fastest shipping to your location.
Note: There is no return policy for this order. Only replacement can be given if product is dead on arrival and by providing video proof within 24 hours of delivery.
There is no GST input available for this order.
Any disputes are subject matter of Rohini court Delhi.
There is no GST input available for this order.
Any disputes are subject matter of Rohini court Delhi.
Product Specifications

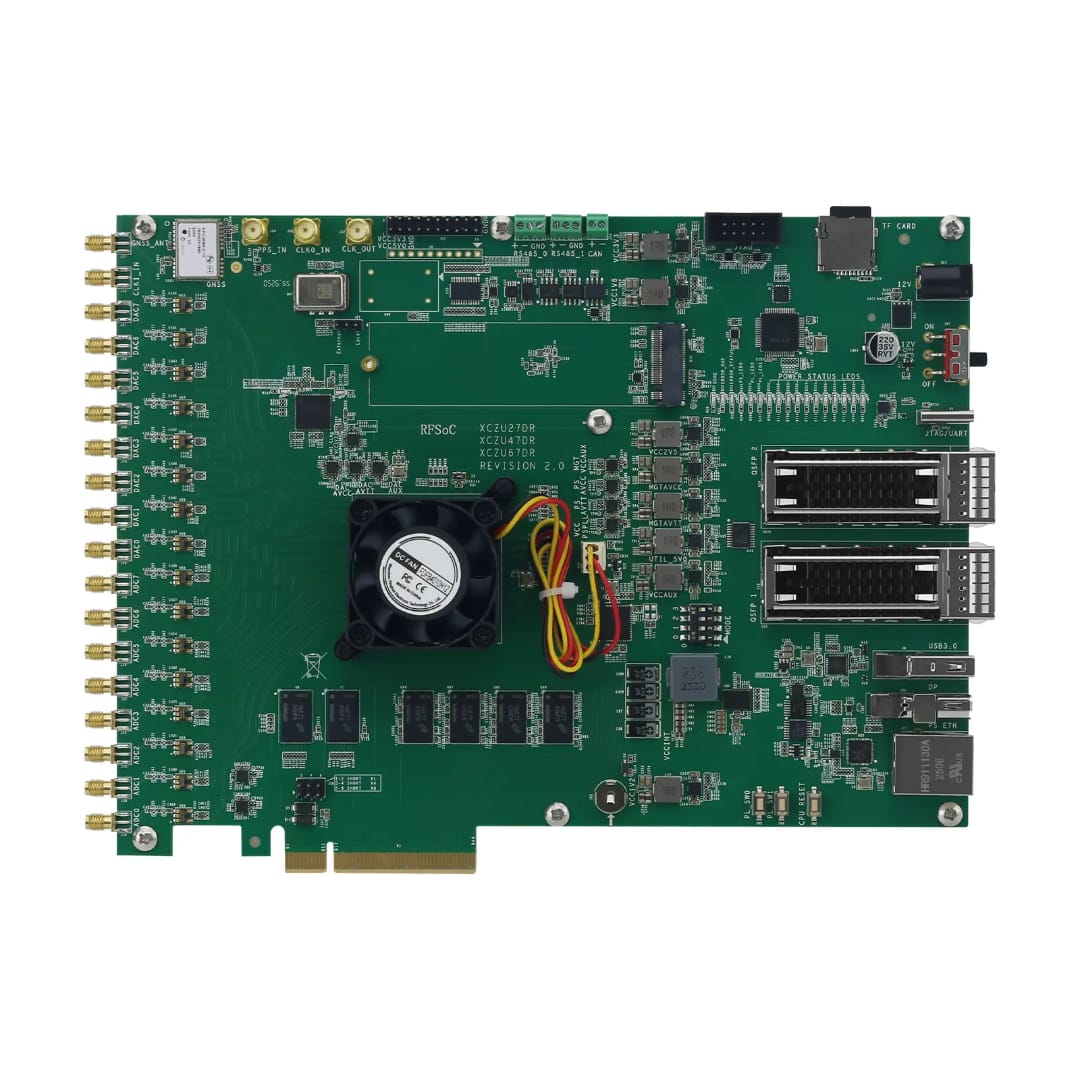

| Product Name | XCZU27DR RFSOC PCIE RF Wireless Development Board for ZYNQ Onboard GNSS Module Support PPS Output |
| Brand | Calmora |
| Category | XCZU27DR RFSoC Development Board |
| Weight | 900 g |
| Availability | In Stock |
