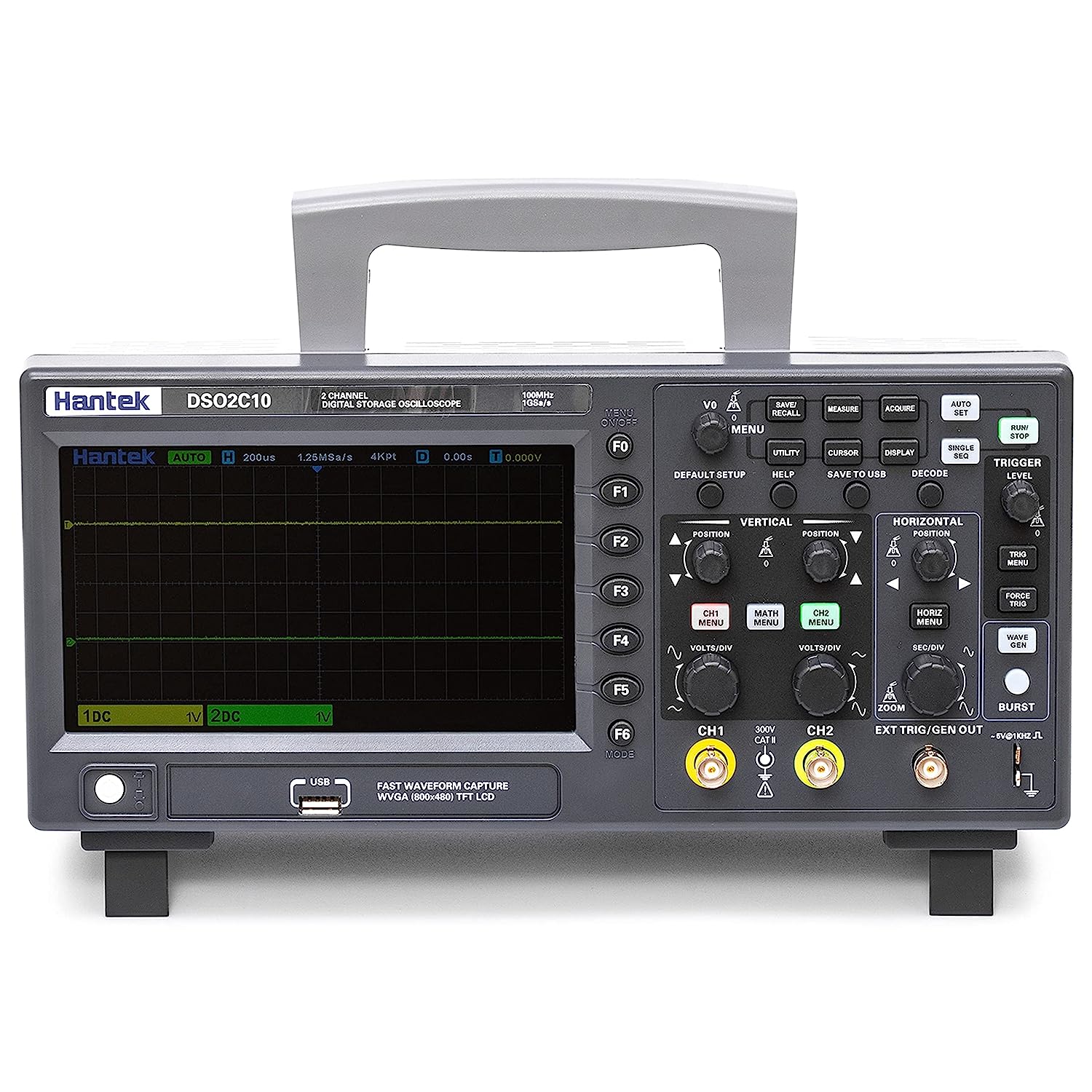

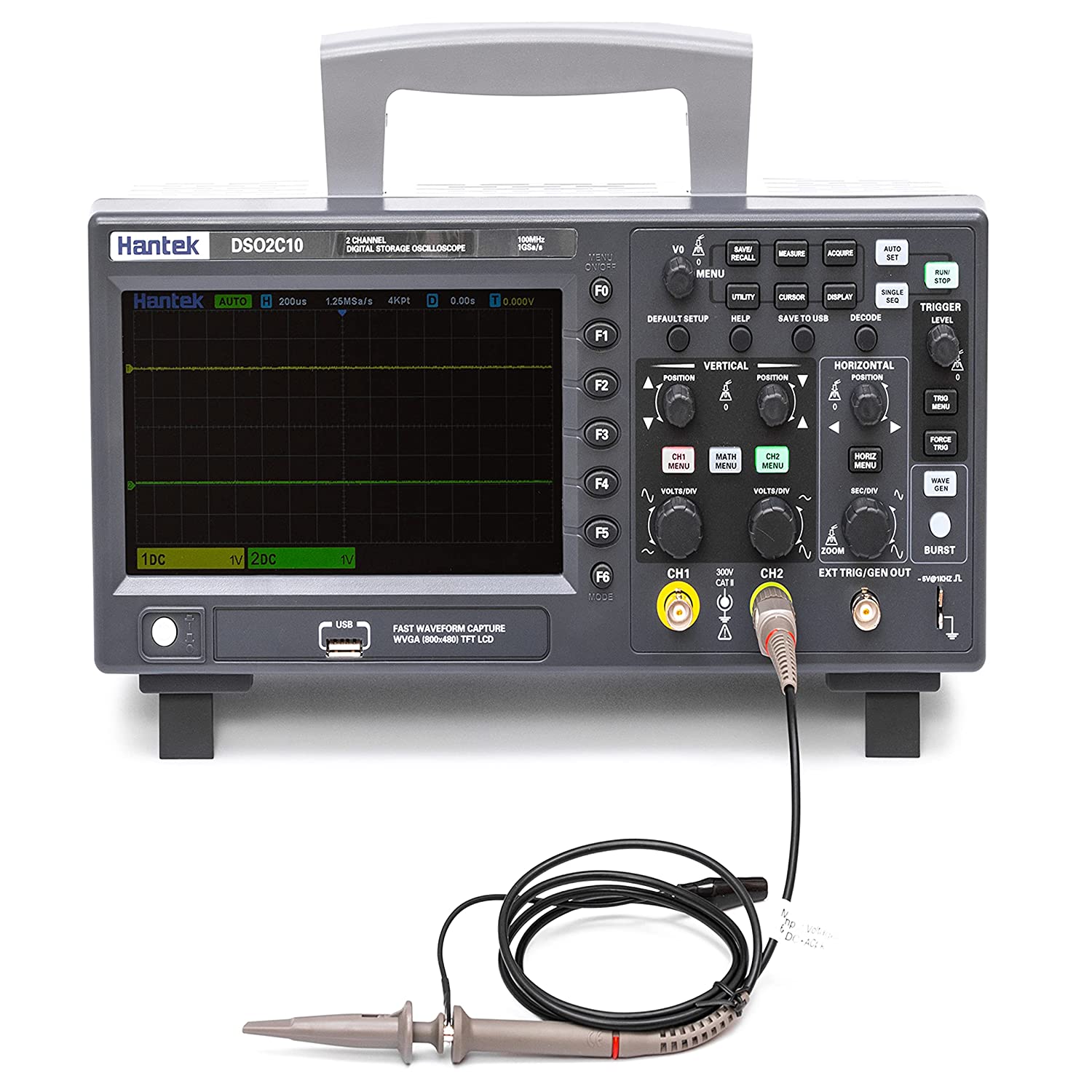

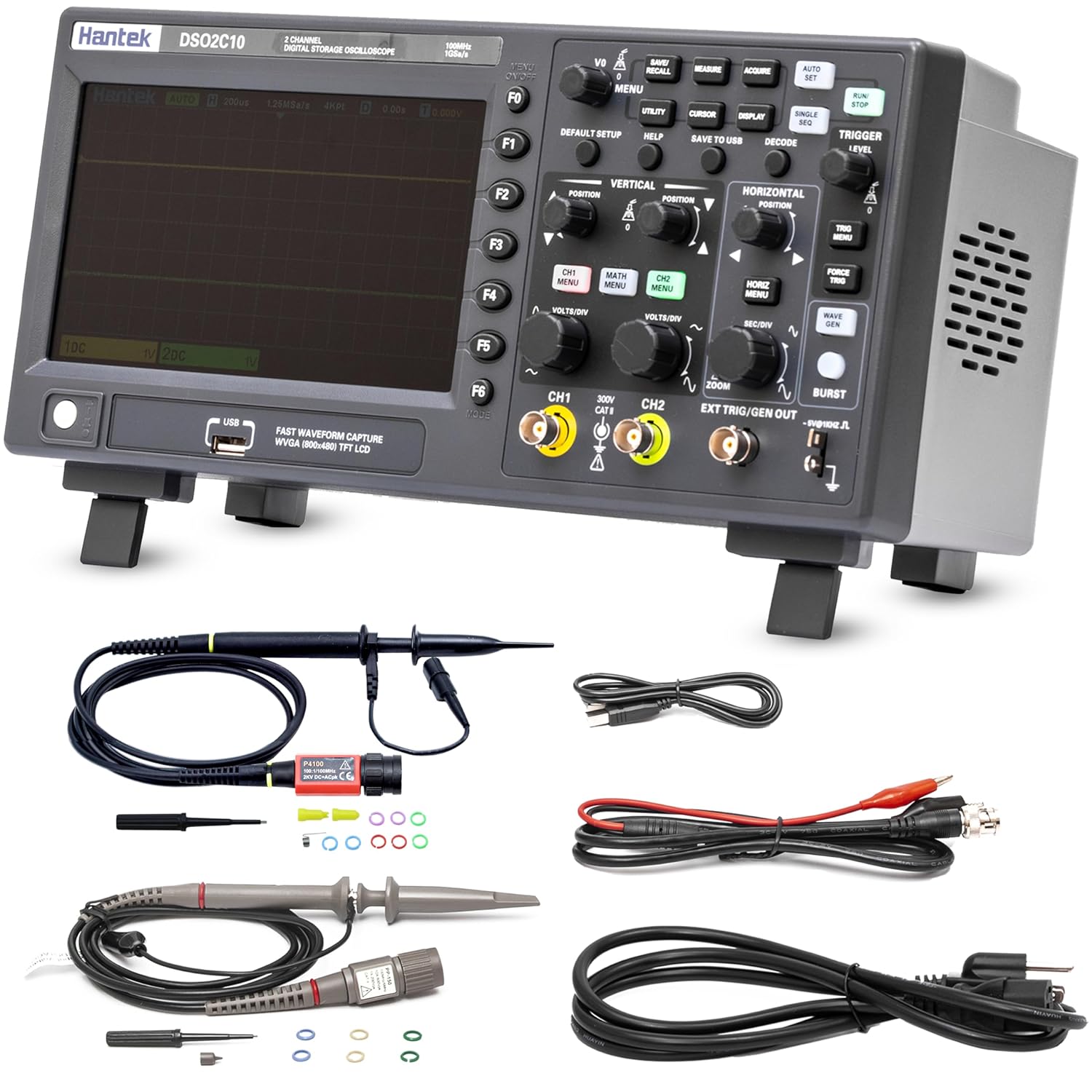

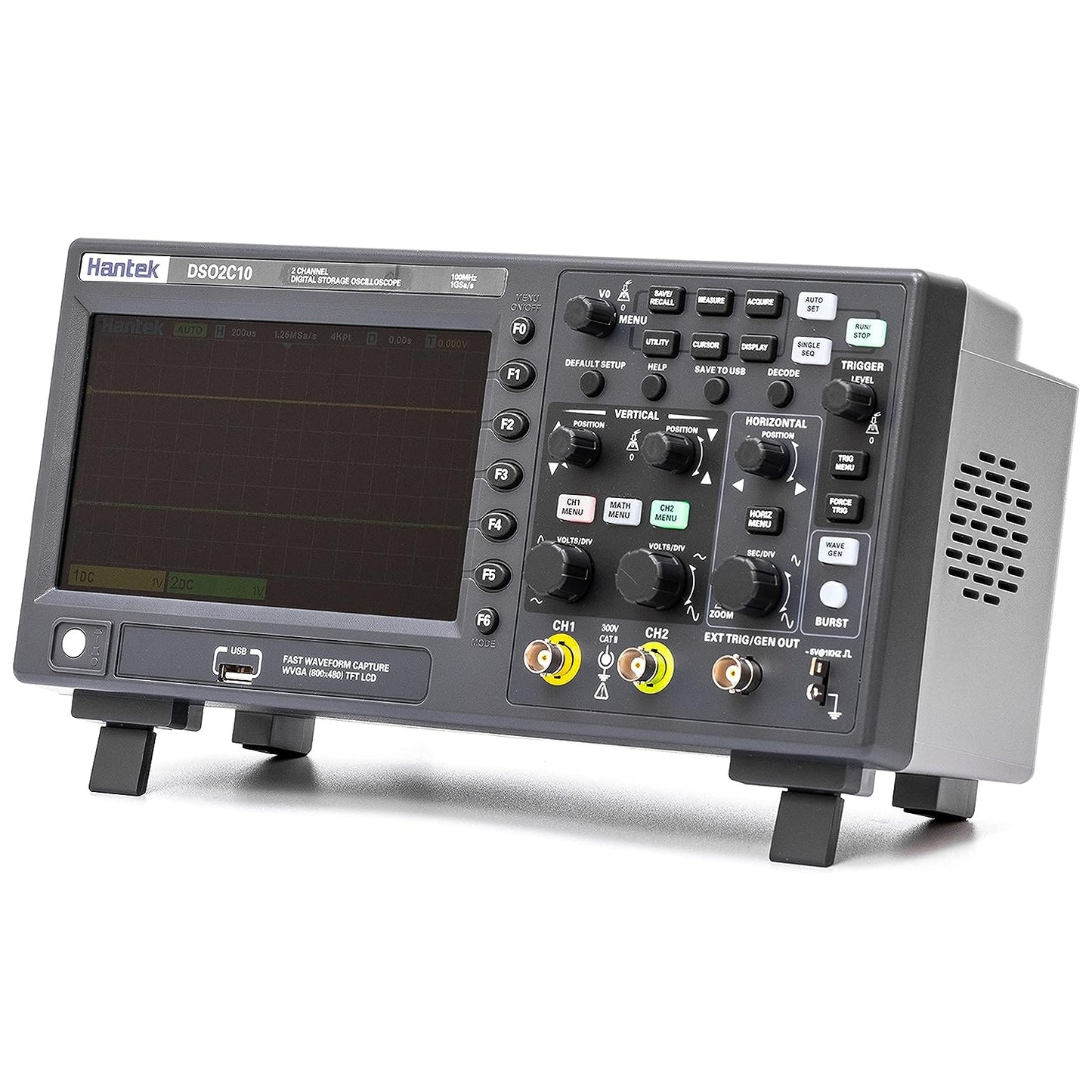

1) 2 channels which are respectively controlled by independent knobs 2) 100MHZ analog channel bandwidth 3) Sampling rate up to 1 GSa/s 4) 8M memory depth 5) Vertical range 2mV/div ~ 10V/div 6) Vertical resolution: 8bit 7) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC 8) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN 9) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 10) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator 11) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. 12) 2 sets of digital voltmeters 13) Support threshold testing, free measurements within the screen 14) Abundant SCPI remote command control 15) USB Host/Device.
